Brushless motors do not suffer from the friction and wear found on a brushed motor, nor do they generate the same level of heat. Not even close. That’s because, nothing touches outside of a few bearings and it uses a controller to determine speed and output. The controller has the ability to lower output when less pressure is needed and increase output when more pressure is needed. The result is a significantly reduced fuel temperature. To ensure the best results, AMS Omega Fuel Pumps use OE quality brushless motors and automotive spec brushless controllers.
Standard fuel pumps suffer from pressure drop at higher fuel pressures. Our superior screw style fuel pump maintains much higher pressure despite these harsh operating conditions. The graph below compares the Omega Brushless Fuel Pump with others on the market along with a stock Bugatti pump for reference.
Omega Brushless Fuel Pump Flow Rate (LPH) / Pressure (PSI) vs Competition
Benefits
- Produces less heat lowering fuel temperature and prevent engine damage
- Smaller for easy installation
- USB thumb drive included with detailed install instructions
- Quieter for driving comfort
- High flow rate with no pressure drop
- 1200HP capable with room to expand the system
- Entire system neatly contained inside the fuel tank

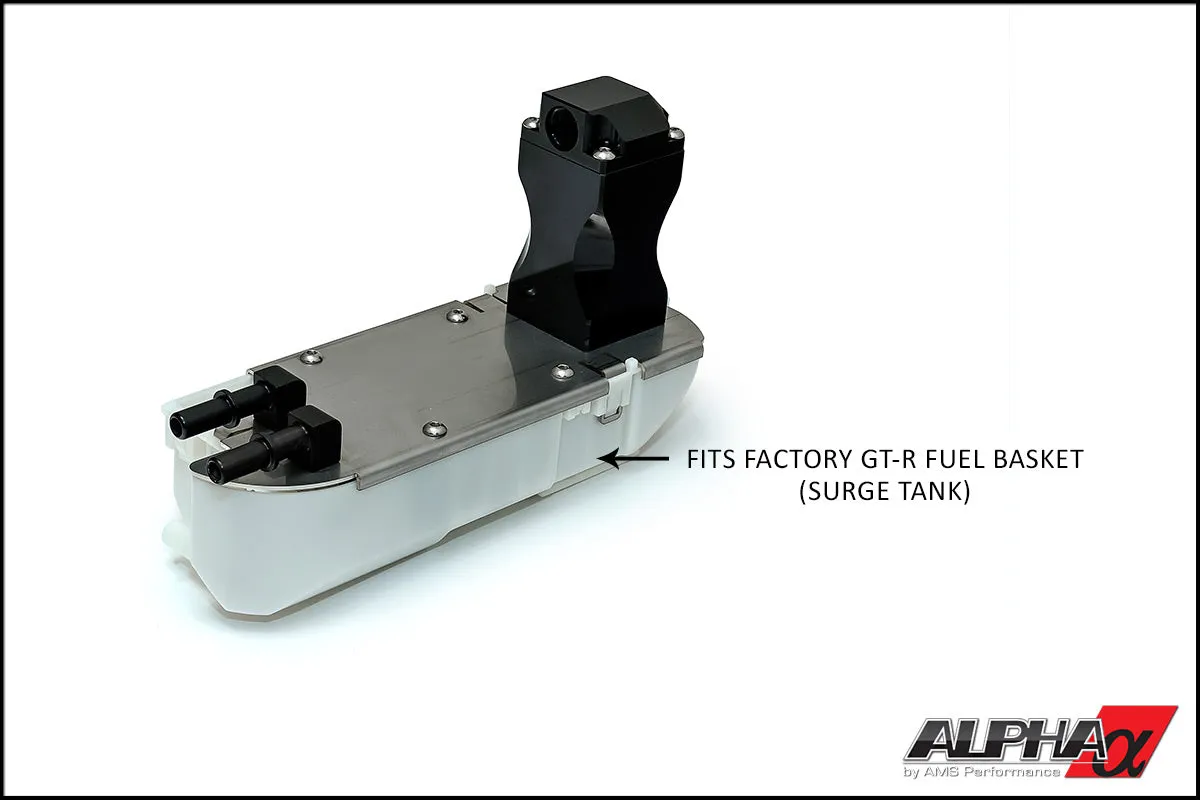

- Utilizes the factory “surge tank” to prevent fuel starvation
- Simple user interface
- Tested and proven on the world’s fastest R35 GT-Rs

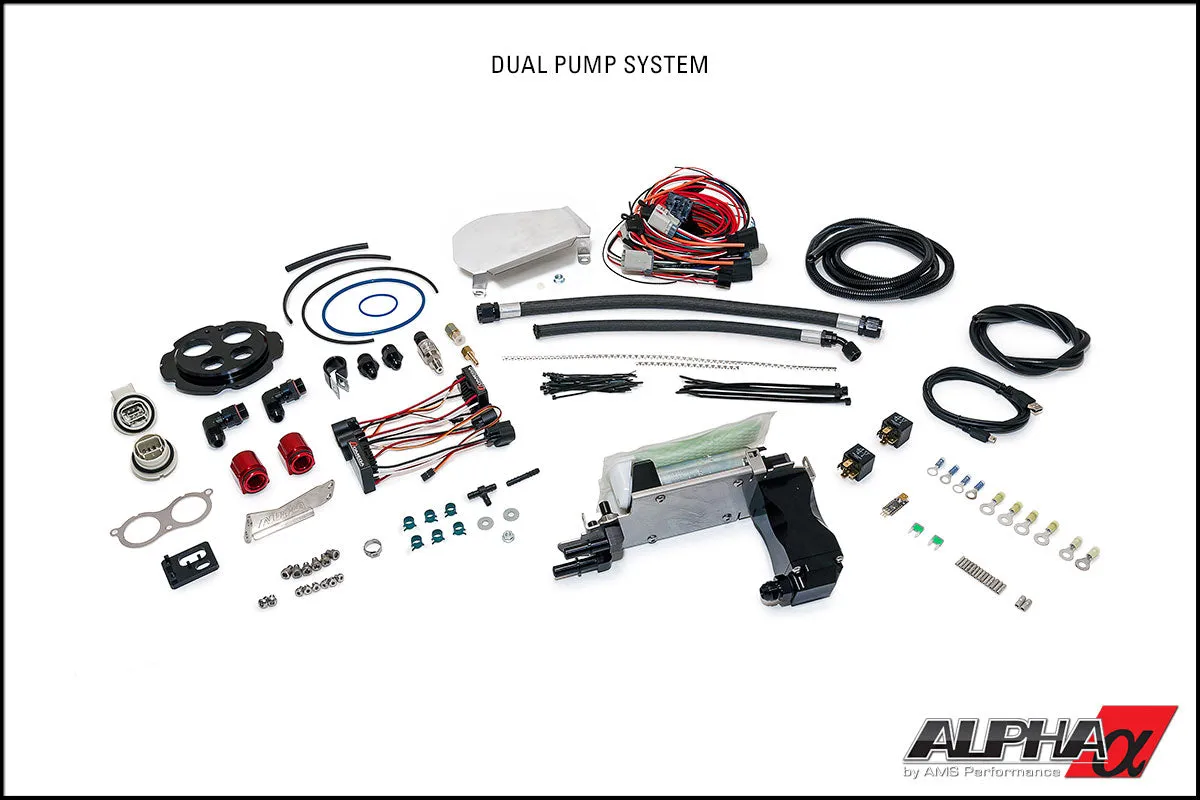

Includes

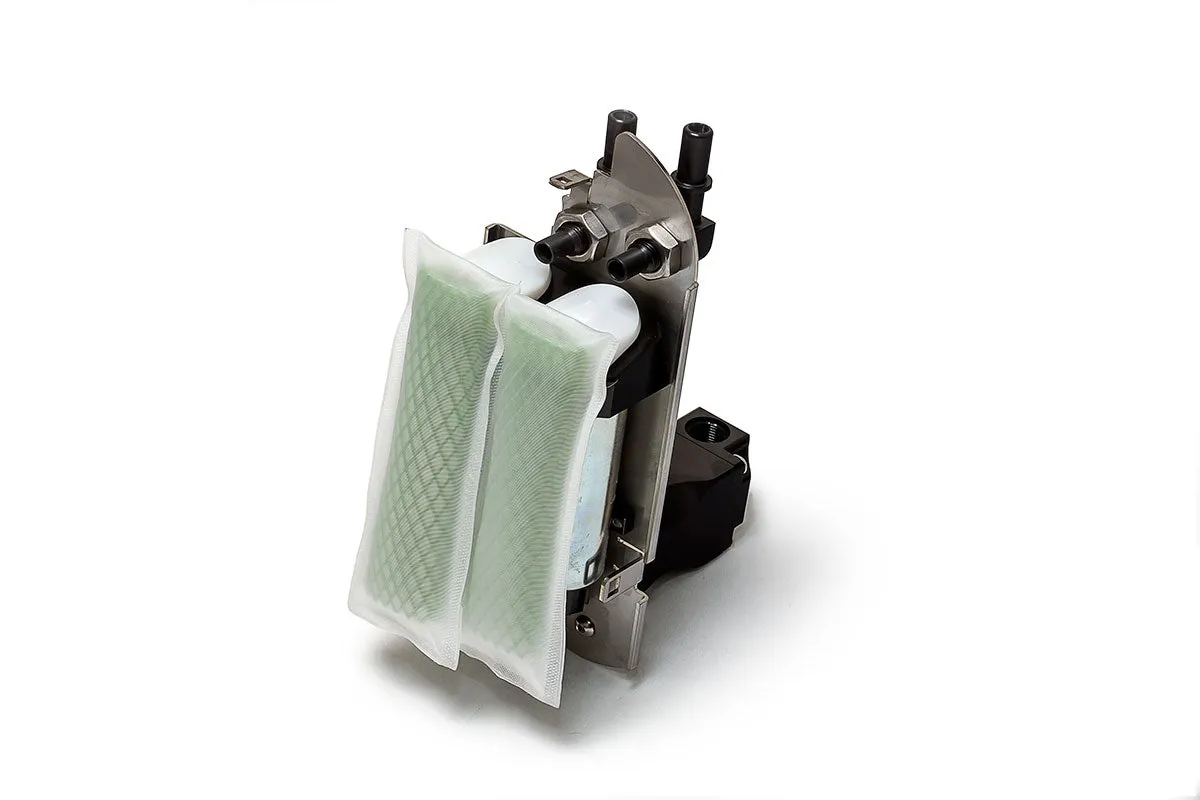

- Billet fuel pump filter housing with pump installed and assembled
- Wire harnesses
- 3.5 Bar MAP sensor
- Fuel pump controller
- USB interface
- USB thumb drive with software and detailed instructions
- Inside tank hoses
- Replaceable Fuel Filters: Pre-pump filter socks (Walbro 125-118) and post-pump 6 micron filter (Fuelab 71804)
- All necessary hardware and fittings to install
Applications
- 2009 Nissan R35 GT-R
- Fits all USDM, JDM and European Models (LHD & RHD)
