Brand: Aeromotive
Manufacturer's Part Number: 11202
Part Type: Fuel Pumps
Product Line: Aeromotive A2000 Drag Race Fuel Pumps
Automotive Fittings Part Number: AEI-11202
UPC: 00684980000023
Fuel Pump Type: Electric external

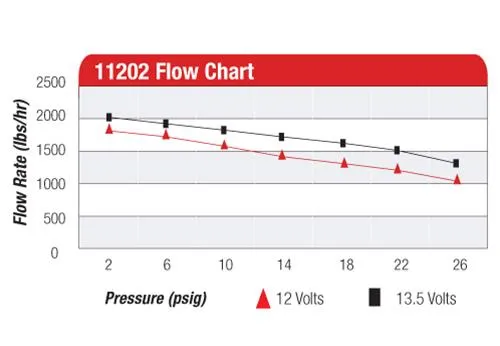

Flow Rate: 350 gph/1,325 lph
Fuel Pressure (psi): 30 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: -10 AN
Inlet Quantity: 1
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -10 AN
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Has integrated bypass regulator with -8 AN O-ring return port and 1/8 in. NPT gauge port.
Description:
Aeromotive A2000 drag race fuel pumps deliver 350 gph of fuel at free flow—enough for engines between 500 and 2,000 hp. They use a diaphragm-controlled regulator for even, reliable flow without sudden pressure spikes. The results are more consistent ETs and better overall performance. Compatible with gasoline and alcohol, the pumps feature a diaphragm bypass, -10 AN inlet and outlet ports, a -8 AN return port, a 1/8 in. NPT gauge port, and a proprietary shaft seal design.
